100.00%
median GTI; median GAl +0.00%. 0/30 are >1σ positive.
← CDFS MOS audit 首页 ← 0101/0201 双观测 Pareto
obj.pi 只作模板与 provenance，不能直接混作 reference。尚未重抽匹配的 4.background、没有 GTI-specific RMF/ARF、没有 XSherpa residual 或 sky-background stability 验证。因此正的 GAl 只说明这个 detector-space 筛选指标在该 ObsID 的方向变化，不能称为“去掉了多少 SP”。99.47%
median GTI; median GAl +0.28%. 2/30 are >1σ positive.
99.95%
median GTI; median GAl +0.00%. 2/30 are >1σ positive.
96.21%
median GTI; median GAl +0.75%. 8/30 are >1σ positive.
G_Al=(Al sideband-excess/local-continuum contrast)_strategy/(...)_2.filter−1 是主指标；Q=rate(1.4–1.8)/[rate(1.0–1.4)+rate(1.8–3.2)] 仅作宽带一致性诊断。

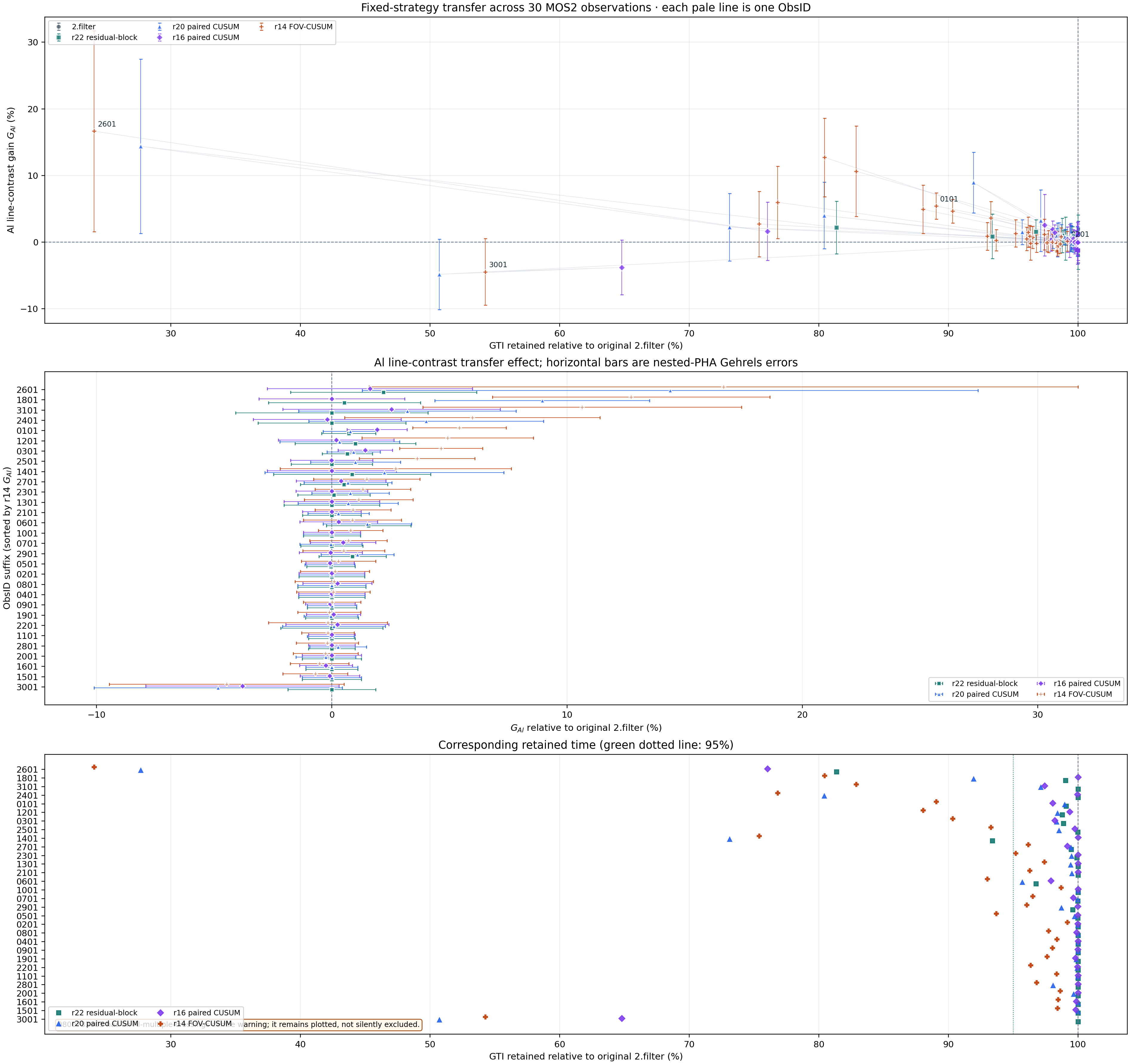

AL_MULTIPLE_CROSSINGS centre 警告。不能仅凭图上右上移动就声明算法改善，必须先看对应的 retained time、误差、Q concordance，以及后续 matched-product 光谱拟合。冻结的策略梯子
- 2.filter —
standard_2filter; fixed symmetric line window noneσ. - r22 residual-block —
r22_residualbb_highret; fixed symmetric line window 4.5σ. - r20 paired CUSUM —
r20_alpha_tail_highret; fixed symmetric line window 4.5σ. - r16 paired CUSUM —
r16_paired_cusum_highret; fixed symmetric line window 3.5σ. - r14 FOV-CUSUM —
r14_fov_cusum_intermediate; fixed symmetric line window 2.5σ.
r22/r20/r16 使用正确的 count-space R_FOV−alpha R_corner（alpha 从低 FOV subset 标定）；r14 是纯 FOV 高能段 CUSUM。没有使用 raw FOV-corner 直接相减。所有 temporal decision 在 source PHA/Q 读取前已完成。
逐观测数字
每格依次给出 GTI 保留率、G_Al ± 1σ 和 broad-Q diagnostic。表中 centre 是该 ObsID 的 Al-anchored target，不是原版 2.1.filter 的平均率。
| ObsID / own centre | centre diagnostic | 2.filter | r22 residual-block | r20 paired CUSUM | r16 paired CUSUM | r14 FOV-CUSUM |
|---|---|---|---|---|---|---|
| 0800730101 centre 2.098 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.08% GAl +0.72% ± 1.15% Q +0.24% ± 0.83% | 98.97% GAl +0.79% ± 1.16% Q +0.39% ± 0.83% | 98.03% GAl +1.93% ± 1.28% Q +1.26% ± 0.90% | 89.06% GAl +5.42% ± 1.99% Q +3.83% ± 1.31% |
| 0800730201 centre 2.248 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.39% Q +0.00% ± 1.06% | 99.99% GAl +0.00% ± 1.39% Q +0.00% ± 1.06% | 99.99% GAl +0.00% ± 1.39% Q +0.00% ± 1.06% | 99.17% GAl +0.14% ± 1.47% Q +0.05% ± 1.09% |
| 0800730301 centre 2.088 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 98.87% GAl +0.66% ± 1.06% Q +0.49% ± 0.75% | 98.34% GAl +0.93% ± 1.13% Q +0.54% ± 0.79% | 98.20% GAl +1.42% ± 1.16% Q +0.94% ± 0.80% | 90.32% GAl +4.64% ± 1.76% Q +3.83% ± 1.16% |
| 0800730401 centre 2.126 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.41% Q +0.00% ± 1.10% | 100.00% GAl +0.00% ± 1.41% Q +0.00% ± 1.10% | 99.99% GAl +0.00% ± 1.41% Q +0.00% ± 1.10% | 98.37% GAl +0.06% ± 1.56% Q +0.06% ± 1.19% |
| 0800730501 centre 2.269 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.98% GAl -0.04% ± 1.03% Q -0.02% ± 0.79% | 99.72% GAl -0.08% ± 1.06% Q -0.05% ± 0.81% | 99.98% GAl -0.07% ± 1.03% Q -0.04% ± 0.79% | 93.68% GAl +0.28% ± 1.58% Q +1.95% ± 1.13% |
| 0800730601 centre 2.354 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 96.74% GAl +1.56% ± 1.80% Q +0.55% ± 1.26% | 95.69% GAl +1.50% ± 1.88% Q +0.55% ± 1.30% | 97.90% GAl +0.29% ± 1.65% Q -0.17% ± 1.18% | 93.00% GAl +0.88% ± 2.09% Q +0.26% ± 1.41% |
| 0800730701 centre 2.248 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.97% GAl +0.00% ± 1.32% Q +0.00% ± 0.99% | 99.97% GAl -0.04% ± 1.32% Q -0.02% ± 0.99% | 99.63% GAl +0.48% ± 1.39% Q +0.24% ± 1.03% | 96.49% GAl +0.71% ± 1.64% Q +0.56% ± 1.18% |
| 0800730801 centre 2.142 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.45% Q +0.00% ± 1.08% | 100.00% GAl +0.00% ± 1.45% Q +0.00% ± 1.08% | 99.87% GAl +0.24% ± 1.47% Q +0.05% ± 1.09% | 97.72% GAl +0.10% ± 1.66% Q -0.04% ± 1.21% |
| 0800730901 centre 2.337 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.05% Q +0.00% ± 0.80% | 100.00% GAl +0.00% ± 1.05% Q +0.00% ± 0.80% | 99.97% GAl -0.06% ± 1.05% Q -0.04% ± 0.80% | 98.01% GAl +0.01% ± 1.21% Q -0.15% ± 0.88% |
| 0800731001 centre 2.248 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.21% Q +0.00% ± 0.94% | 100.00% GAl +0.00% ± 1.21% Q +0.00% ± 0.94% | 100.00% GAl +0.00% ± 1.21% Q +0.00% ± 0.94% | 98.68% GAl +0.79% ± 1.37% Q +0.42% ± 1.01% |
| 0800731101 centre 2.322 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 0.99% Q +0.00% ± 0.75% | 99.98% GAl -0.04% ± 1.00% Q -0.05% ± 0.75% | 100.00% GAl +0.00% ± 0.99% Q +0.00% ± 0.75% | 98.34% GAl -0.17% ± 1.12% Q +0.05% ± 0.83% |
| 0800731201 centre 2.524 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 98.78% GAl +1.00% ± 2.57% Q +0.40% ± 1.83% | 98.40% GAl +0.33% ± 2.54% Q -0.10% ± 1.83% | 99.35% GAl +0.18% ± 2.46% Q +0.18% ± 1.77% | 88.05% GAl +4.92% ± 3.64% Q +3.40% ± 2.43% |
| 0800731301 centre 2.245 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 2.04% Q +0.00% ± 1.50% | 99.41% GAl +0.69% ± 2.13% Q +0.31% ± 1.55% | 100.00% GAl +0.00% ± 2.04% Q +0.00% ± 1.50% | 97.40% GAl +1.14% ± 2.31% Q +1.61% ± 1.68% |
| 0800731401 centre 2.228 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 93.38% GAl +0.86% ± 3.33% Q -0.53% ± 2.32% | 73.10% GAl +2.23% ± 5.07% Q -0.93% ± 3.28% | 100.00% GAl +0.00% ± 2.75% Q +0.00% ± 2.04% | 75.40% GAl +2.72% ± 4.91% Q -1.19% ± 3.15% |
| 0800731501 centre 2.288 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.25% Q +0.00% ± 0.96% | 100.00% GAl +0.00% ± 1.25% Q +0.00% ± 0.96% | 99.82% GAl -0.08% ± 1.27% Q +0.08% ± 0.97% | 98.41% GAl -0.70% ± 1.38% Q -0.23% ± 1.04% |
| 0800731601 centre 2.072 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.10% Q +0.00% ± 0.82% | 99.99% GAl +0.00% ± 1.10% Q +0.00% ± 0.82% | 99.86% GAl -0.25% ± 1.12% Q -0.22% ± 0.83% | 98.46% GAl -0.52% ± 1.24% Q -0.33% ± 0.90% |
| 0800731801 centre 2.319 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.02% GAl +0.54% ± 3.23% Q +0.72% ± 2.41% | 91.92% GAl +8.94% ± 4.56% Q +7.29% ± 3.13% | 100.00% GAl +0.00% ± 3.09% Q +0.00% ± 2.32% | 80.43% GAl +12.72% ± 5.90% Q +10.95% ± 4.05% |
| 0800731901 centre 2.265 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.12% Q +0.00% ± 0.86% | 99.86% GAl -0.04% ± 1.14% Q -0.07% ± 0.87% | 99.80% GAl +0.07% ± 1.15% Q -0.00% ± 0.87% | 97.61% GAl -0.11% ± 1.34% Q -0.42% ± 0.97% |
| 0800732001 centre 2.261 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.26% Q +0.00% ± 0.92% | 99.64% GAl -0.26% ± 1.27% Q -0.13% ± 0.93% | 100.00% GAl +0.00% ± 1.26% Q +0.00% ± 0.92% | 98.61% GAl -0.26% ± 1.37% Q +0.05% ± 0.99% |
| 0800732101 centre 2.391 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.24% Q +0.00% ± 0.95% | 99.51% GAl +0.28% ± 1.31% Q -0.03% ± 0.99% | 100.00% GAl +0.00% ± 1.24% Q +0.00% ± 0.95% | 96.26% GAl +0.90% ± 1.61% Q +0.31% ± 1.15% |
| 0800732201 centre 2.210 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 2.17% Q +0.00% ± 1.61% | 99.94% GAl +0.09% ± 2.18% Q +0.05% ± 1.62% | 99.95% GAl +0.24% ± 2.19% Q +0.13% ± 1.62% | 96.33% GAl -0.17% ± 2.52% Q +0.50% ± 1.83% |
| 0800732301 centre 2.362 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.90% GAl +0.09% ± 1.54% Q +0.03% ± 1.13% | 99.50% GAl +0.79% ± 1.65% Q +0.38% ± 1.18% | 100.00% GAl +0.00% ± 1.53% Q +0.00% ± 1.12% | 95.18% GAl +1.32% ± 2.03% Q +1.29% ± 1.41% |
| 0800732401 centre 2.361 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 3.14% Q +0.00% ± 2.28% | 80.42% GAl +4.00% ± 4.99% Q -0.18% ± 3.22% | 99.95% GAl -0.19% ± 3.14% Q -0.05% ± 2.29% | 76.83% GAl +5.98% ± 5.43% Q +1.98% ± 3.50% |
| 0800732501 centre 2.169 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.98% GAl +0.00% ± 1.73% Q +0.00% ± 1.31% | 98.52% GAl +1.00% ± 1.91% Q +1.08% ± 1.43% | 99.74% GAl -0.01% ± 1.75% Q +0.03% ± 1.33% | 93.28% GAl +3.63% ± 2.45% Q +2.77% ± 1.72% |
| 0800732601 centre 2.390 c/s | AL_MULTIPLE_CROSSINGS AL_MULTIPLE_CROSSINGS | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 81.36% GAl +2.20% ± 3.96% Q -0.13% ± 2.64% | 27.68% GAl +14.38% ± 13.08% Q +4.88% ± 8.45% | 76.03% GAl +1.62% ± 4.36% Q +0.24% ± 2.92% | 24.07% GAl +16.65% ± 15.06% Q +4.30% ± 9.51% |
| 0800732701 centre 2.427 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.46% GAl +0.52% ± 1.86% Q +0.43% ± 1.39% | 99.45% GAl +0.68% ± 1.86% Q +0.60% ± 1.40% | 99.17% GAl +0.39% ± 1.91% Q +0.52% ± 1.42% | 96.16% GAl +1.49% ± 2.26% Q +1.71% ± 1.62% |
| 0800732801 centre 3.309 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 0.99% Q +0.00% ± 0.69% | 98.07% GAl +0.27% ± 1.21% Q -0.03% ± 0.78% | 100.00% GAl +0.00% ± 0.99% Q +0.00% ± 0.69% | 96.79% GAl -0.19% ± 1.32% Q -0.04% ± 0.83% |
| 0800732901 centre 2.529 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 99.58% GAl +0.88% ± 1.43% Q +0.29% ± 1.05% | 98.71% GAl +1.09% ± 1.55% Q +0.22% ± 1.11% | 99.98% GAl -0.05% ± 1.34% Q -0.00% ± 1.01% | 96.04% GAl +0.50% ± 1.74% Q +0.58% ± 1.24% |
| 0800733001 centre 2.309 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 1.87% Q +0.00% ± 1.37% | 50.72% GAl -4.83% ± 5.28% Q -1.88% ± 3.58% | 64.79% GAl -3.80% ± 4.11% Q -0.84% ± 2.83% | 54.27% GAl -4.47% ± 4.99% Q +0.01% ± 3.44% |
| 0800733101 centre 2.493 c/s | AL_UNIQUE_CROSSING — | 100.00% GAl +0.00% ± 0.00% Q +0.00% ± 0.00% | 100.00% GAl +0.00% ± 4.08% Q +0.00% ± 2.88% | 97.13% GAl +3.21% ± 4.62% Q +2.10% ± 3.18% | 97.41% GAl +2.54% ± 4.62% Q +1.03% ± 3.09% | 82.87% GAl +10.64% ± 6.77% Q +8.97% ± 4.37% |
4.background、response，采用 XARTATOMS 的 resolution/SN rebin 和含模型成分/误差棒的 XSherpa 图，检查 sky-background 在低/中 SP 观测是否趋于一致。届时才可判断 temporal screen 是否真正提高了光谱层面的稳定性。
